VFD Panel with Powerflex 4M

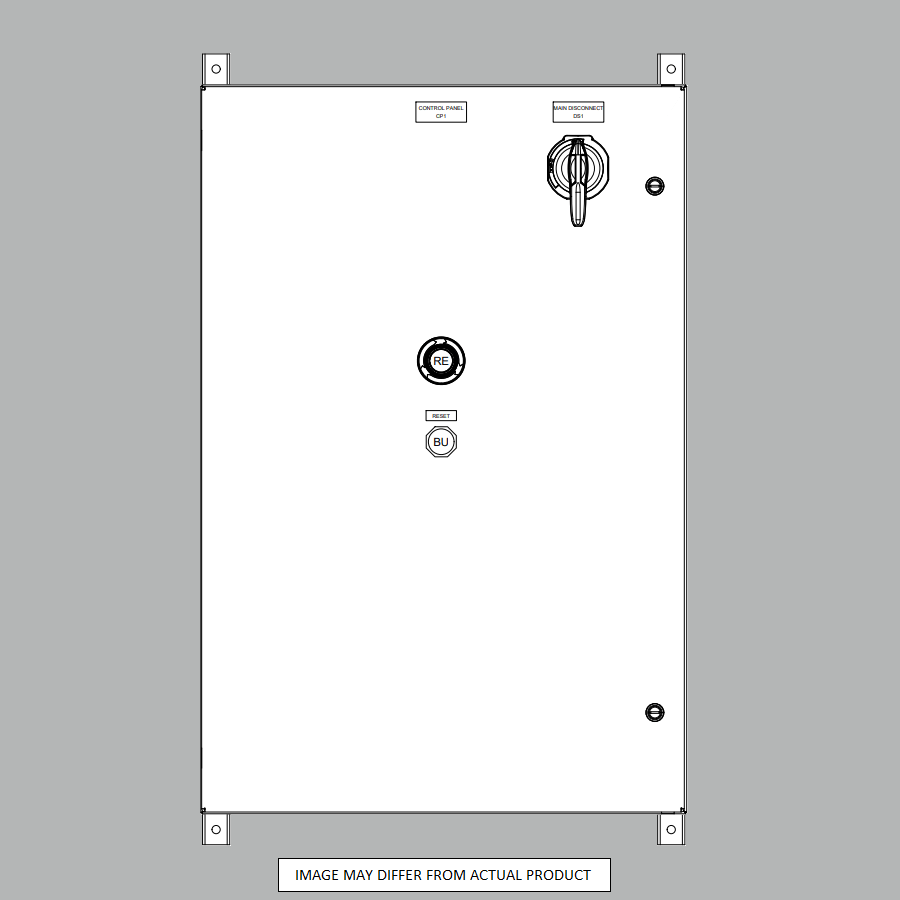

VFD Panel with Powerflex 4M Enclosure

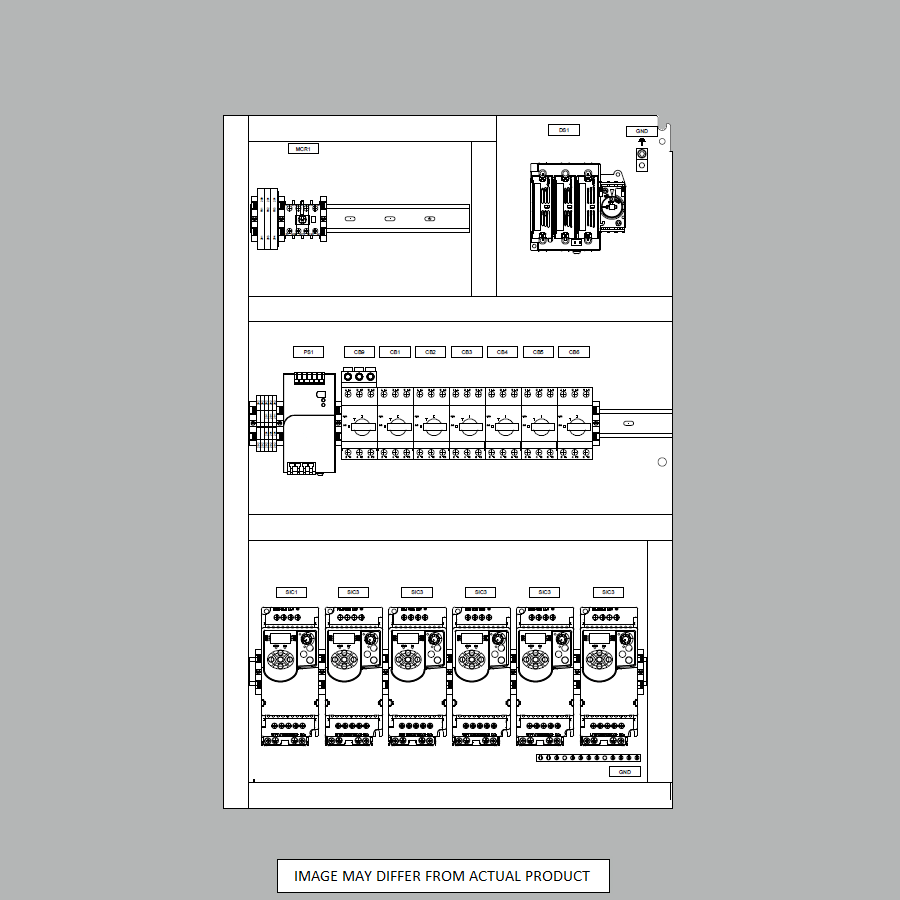

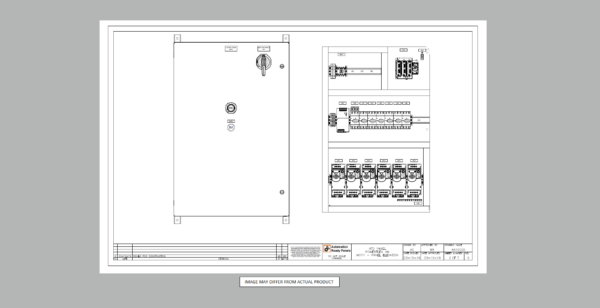

VFD Panel with Powerflex 4M Drawing
Micro820 PLC Panel Image

VFD Panel: Powerflex 4M with Modbus Networking

$2,725.00



  • Up to 200 Amp Rotary Disconnect (depending on number of motors and sizes)
  • Allen-Bradley and Hoffman Components used whenever possible
  • Powerflex 4M VFDs
  • Control Power: 24VDC (5 Amp)
  • Red Safety Relay and Raised Red Stop Pushbutton for Enhanced Hardwired Safety Circuit
  • Mild Steel ANSI Grey Type 4 Painted Panel Enclosure with Mounting Foot Kit. PANEL SIZE WILL VARY (Min. 24″x24″x10″). Fan/Filter Kit included with VFDs when required

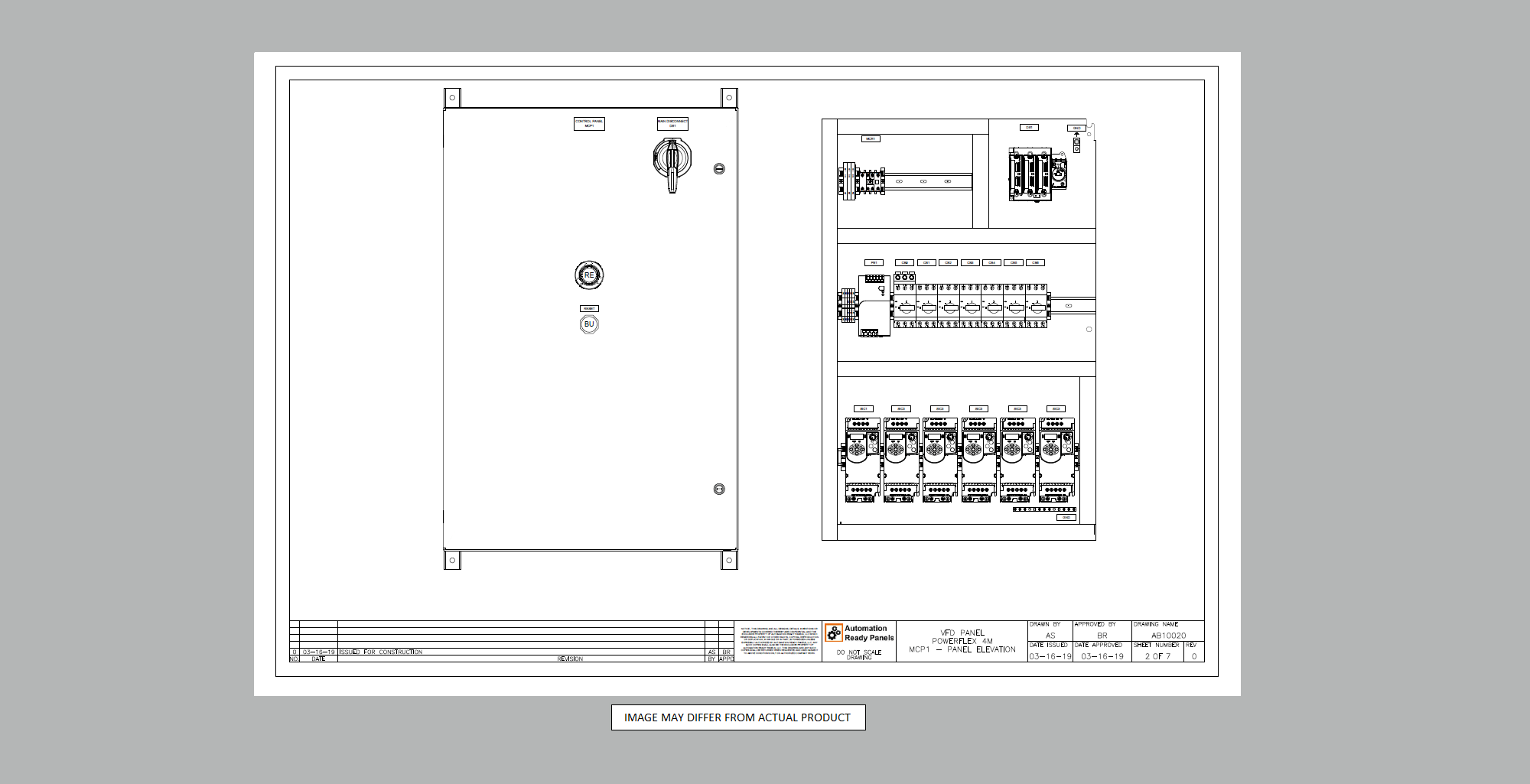

  • Includes Electrical Schematic Drawings
  • 1 Additional Hour of Free Custom Application Programming, Drawings Updates, and/or Remote Installation Support
  • Standard Lead Time: 7-10 Days (*subject to Terms and Conditions)
  • Need a different version of this standard design? Please just Contact Us and we will post it for standard purchase.
  • For Indoor Use ONLY. Keep out of direct sunlight
SKU: AB10020 Category: Tag:
Choose Variable Frequency Drives (VFD) or Motor Starters (MS) for each. Powerflex 4M VFD Not Available for 575VAC. ***Prices Include correct size disconnect, motor protection, fan/filter, etc
Product total
Options total
Grand total
Request Custom Changes

Product Categories

Description

This Powerflex 4M VFD Panel is based around state of the art Powerflex 4M Variable Frequency Drives (*).

With this control panel, the Powerflex 4M VFDs can be flexibly programmed with many parameter options.  VFDs can be networked over Modbus to reduce IO requirements and bring in smart data from the device (customer to install network hardware and programming to implement modbus network).

(*) Up to 10 VFDs can be used in this design with a Full-Load Amps of less than 200 Amps (Due to our 200 Amp Max Disconnect Limitation: largest motor amps x 1.25 + sum of other motor amps + non-motor continuous loads x 1.25).  Visit https://www.engineeringtoolbox.com/elctrical-motor-full-load-current-d_1499.html for motor FLA chart.  Panel Size may be larger than shown if large VFDs are selected (May also include fan/filter kit if VFDs are selected).  Temperature calculation assumes only back of panel has no air flow, Indoor Use (out of direct sunlight), 50-90°F Ambient temperature.
(**) The free included hour of programming can also be used either partially or fully for CAD drawings updates and/or remote installation phone support.
(***) Design according to UL508a

Need a different customization to this design? Please use the Contact Us webpage to let us know how we can help.
