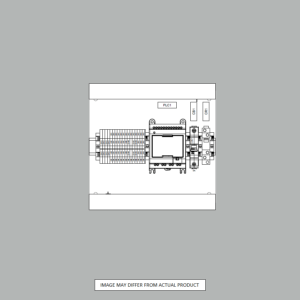

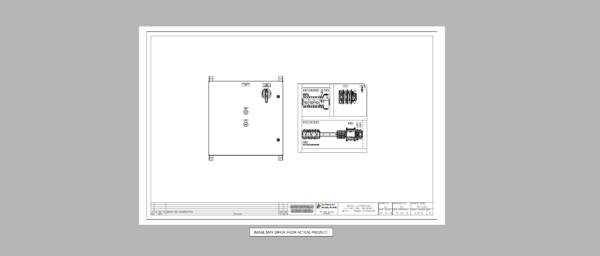

Micro810 PLC Control Panel Layout - LARGE

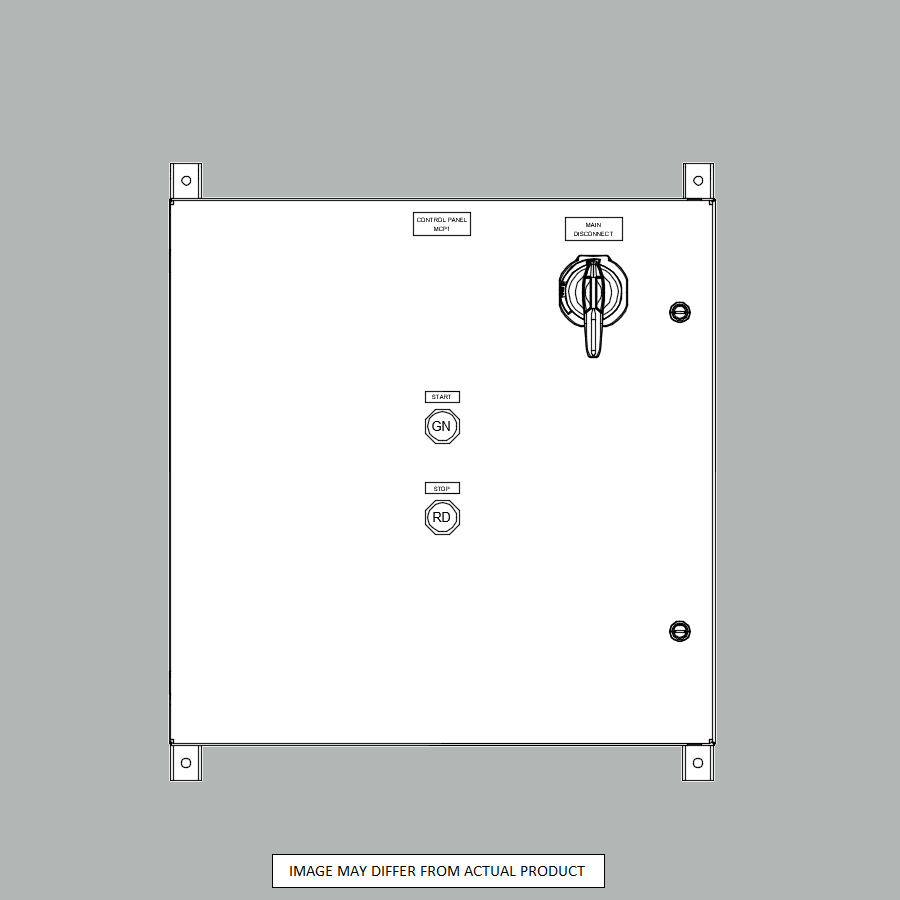

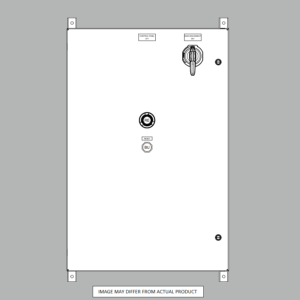

Micro810 PLC Panel Enclosure- - LARGE

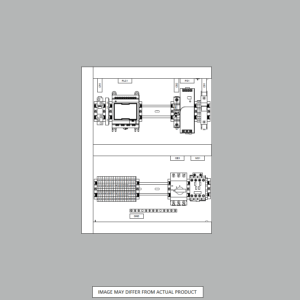

Micro810 Panel Layout - LARGE

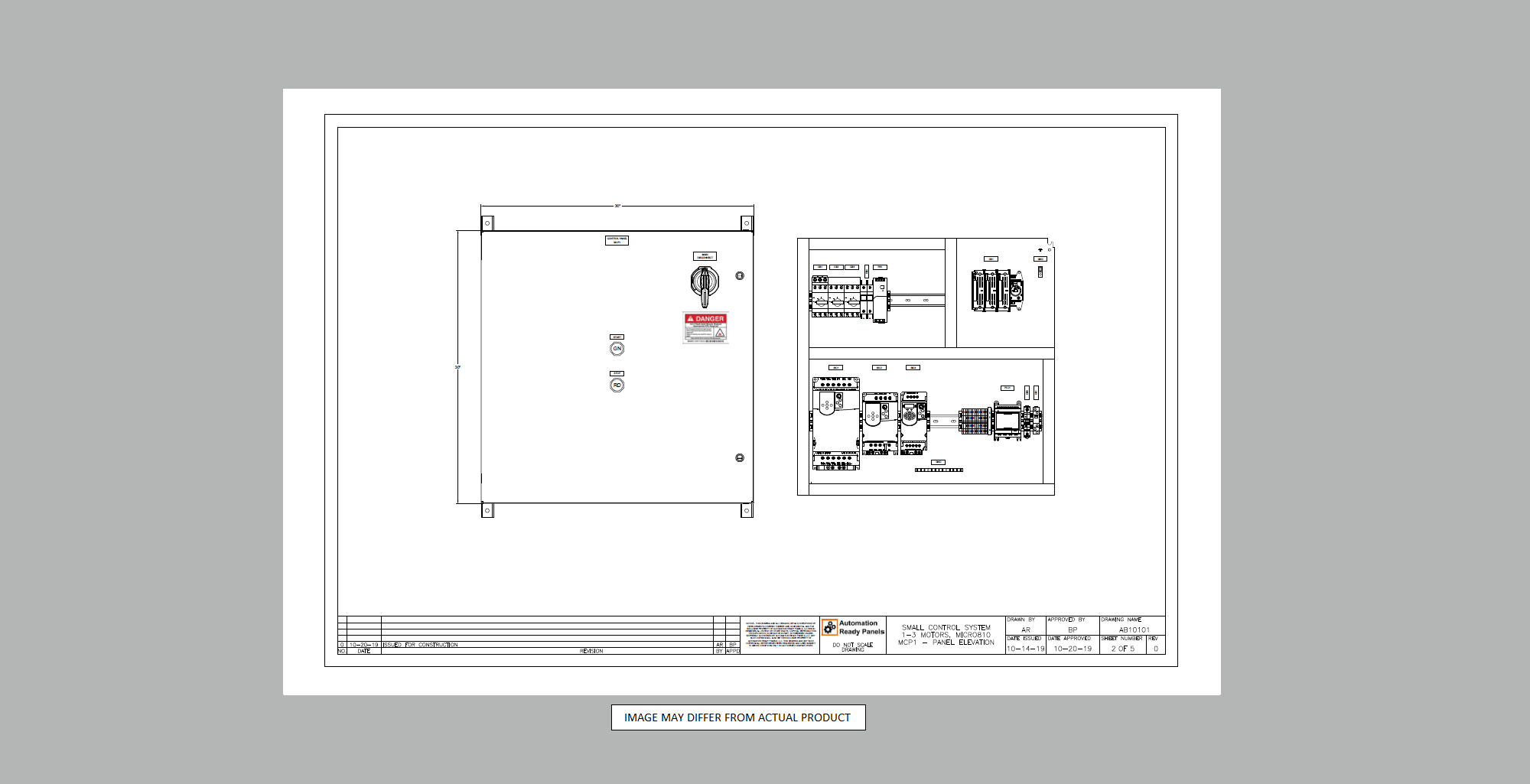

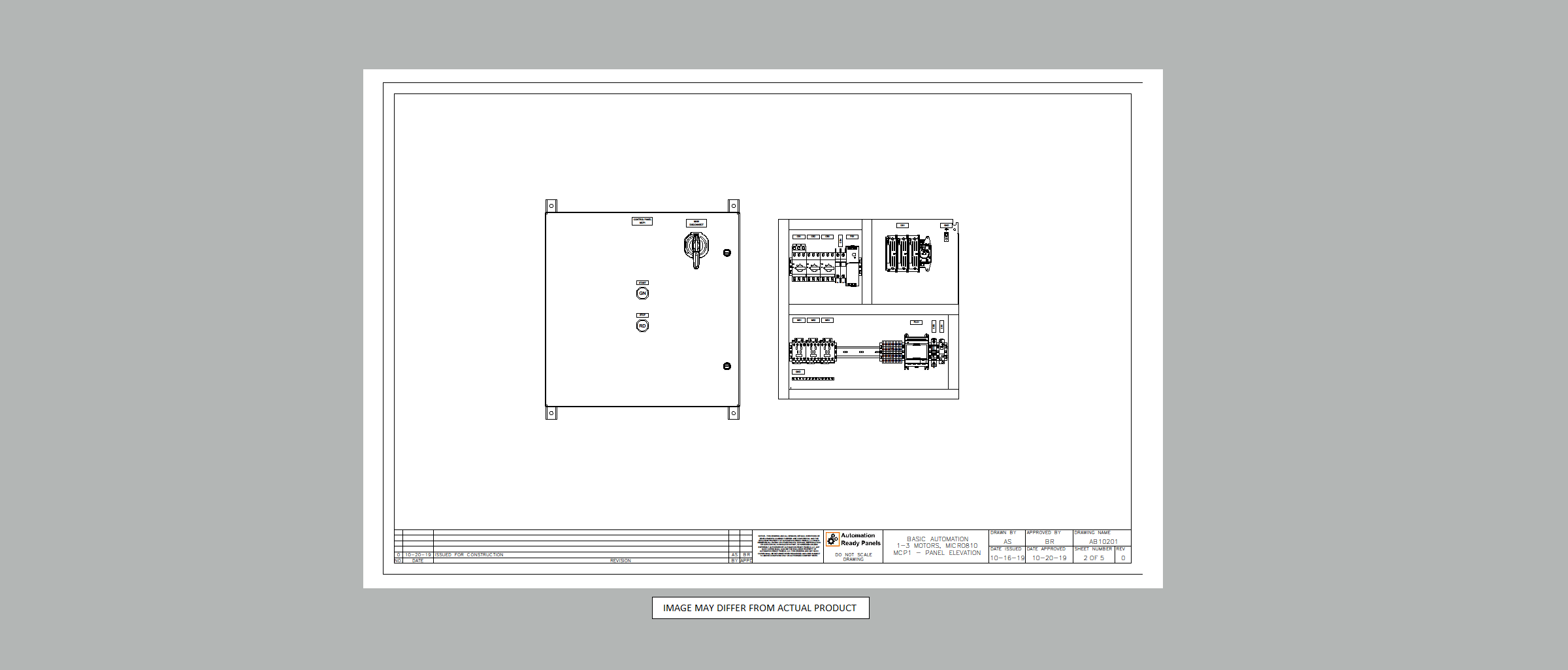

AB10101 - Basic Automation PLC Control Panel Layout

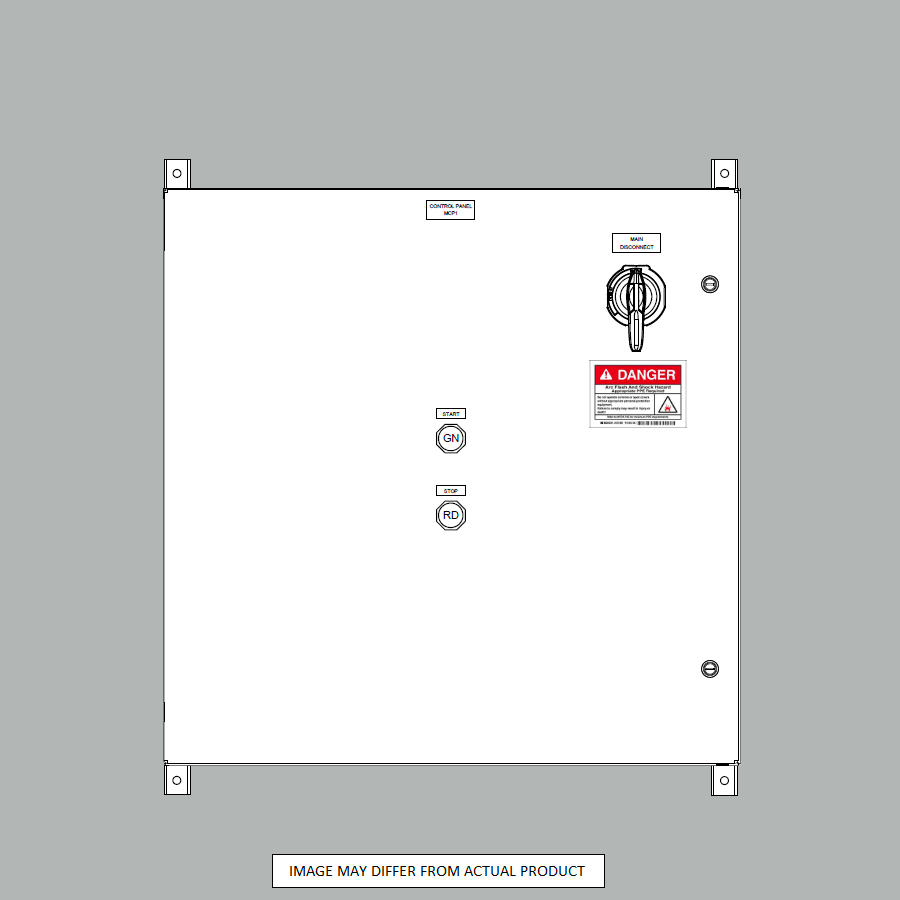

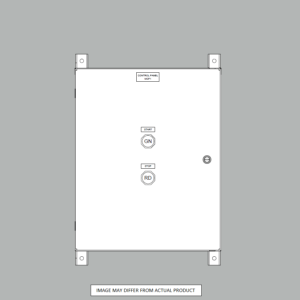

Micro810 PLC Panel Enclosure

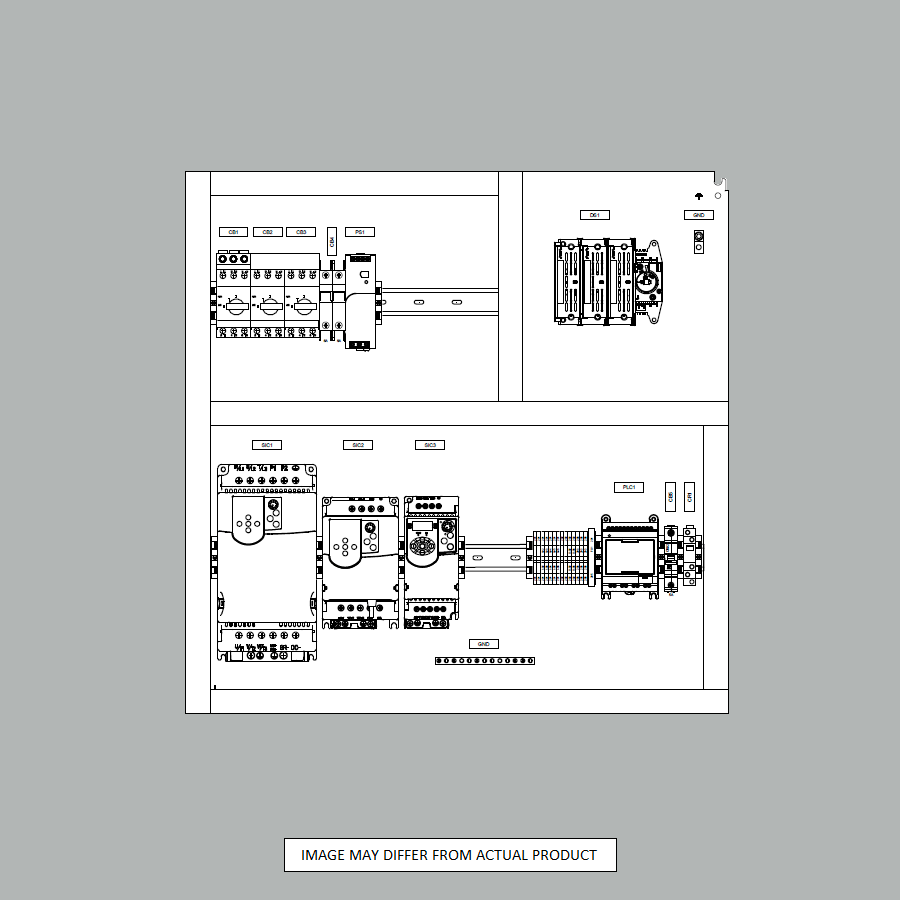

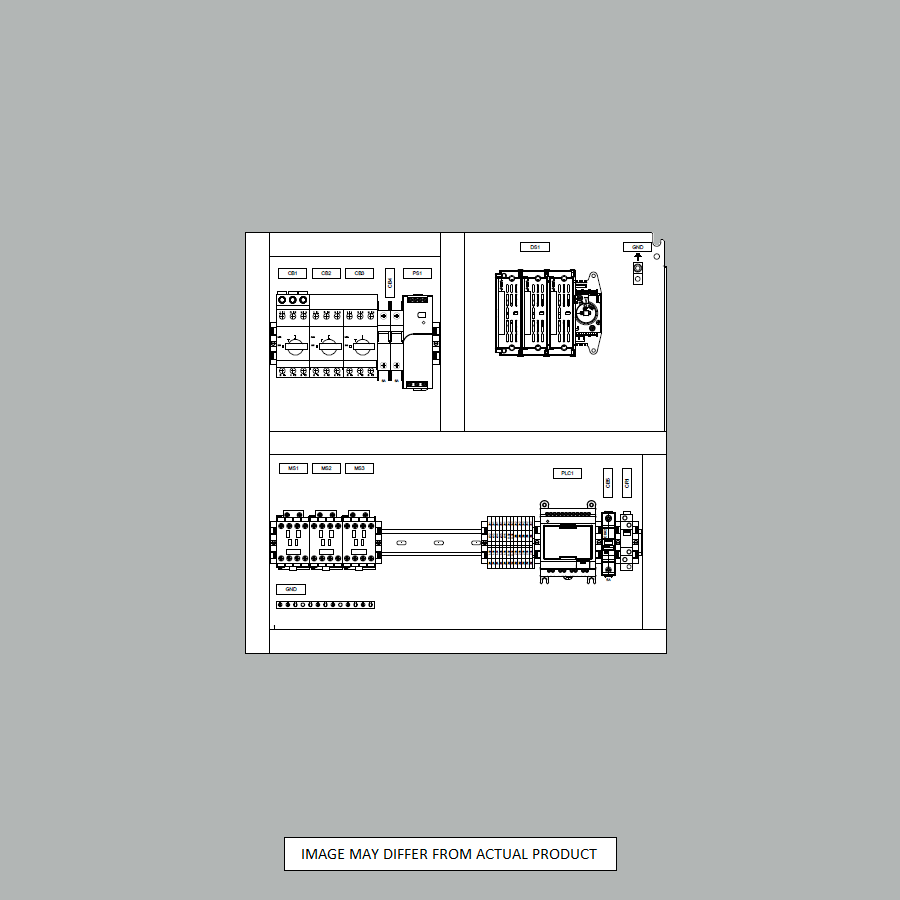

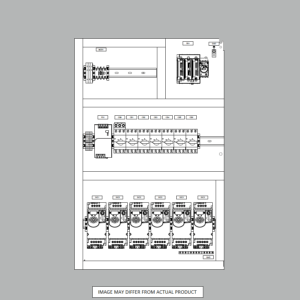

Micro810 PLC Panel Layout

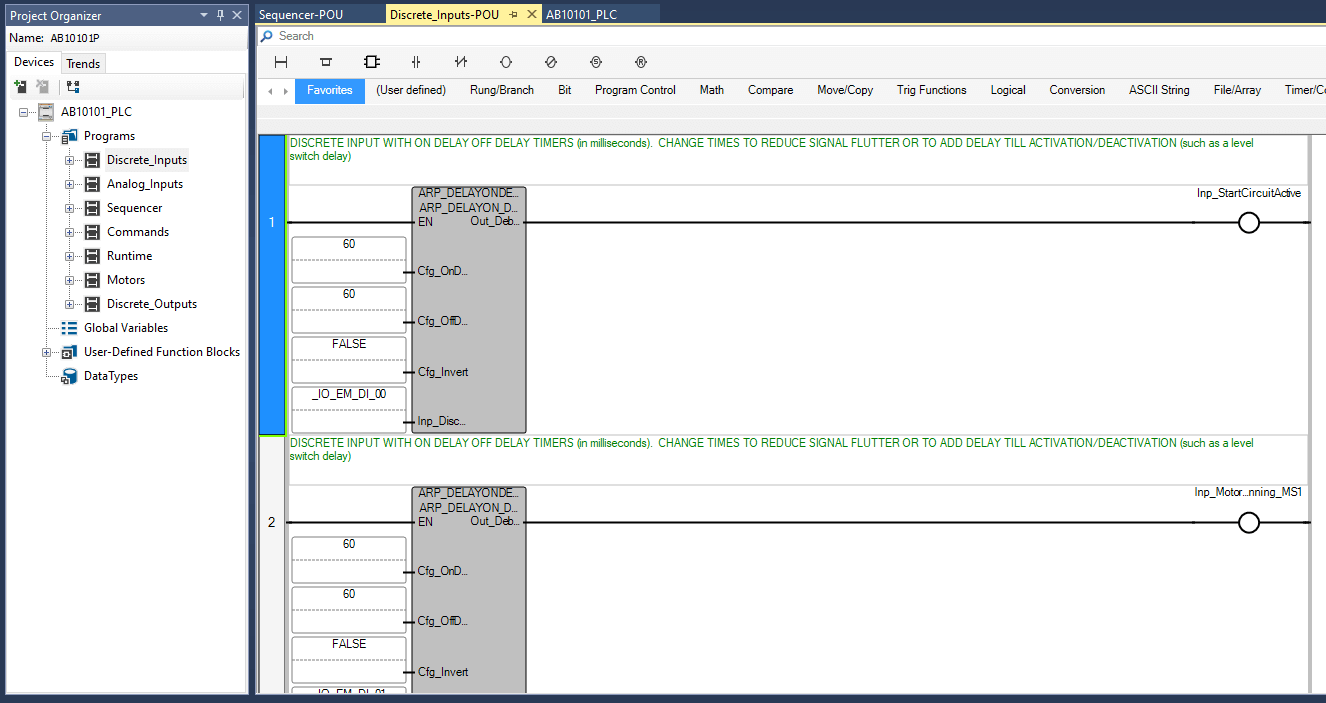

Micro810 PLC Programming Inputs Routine

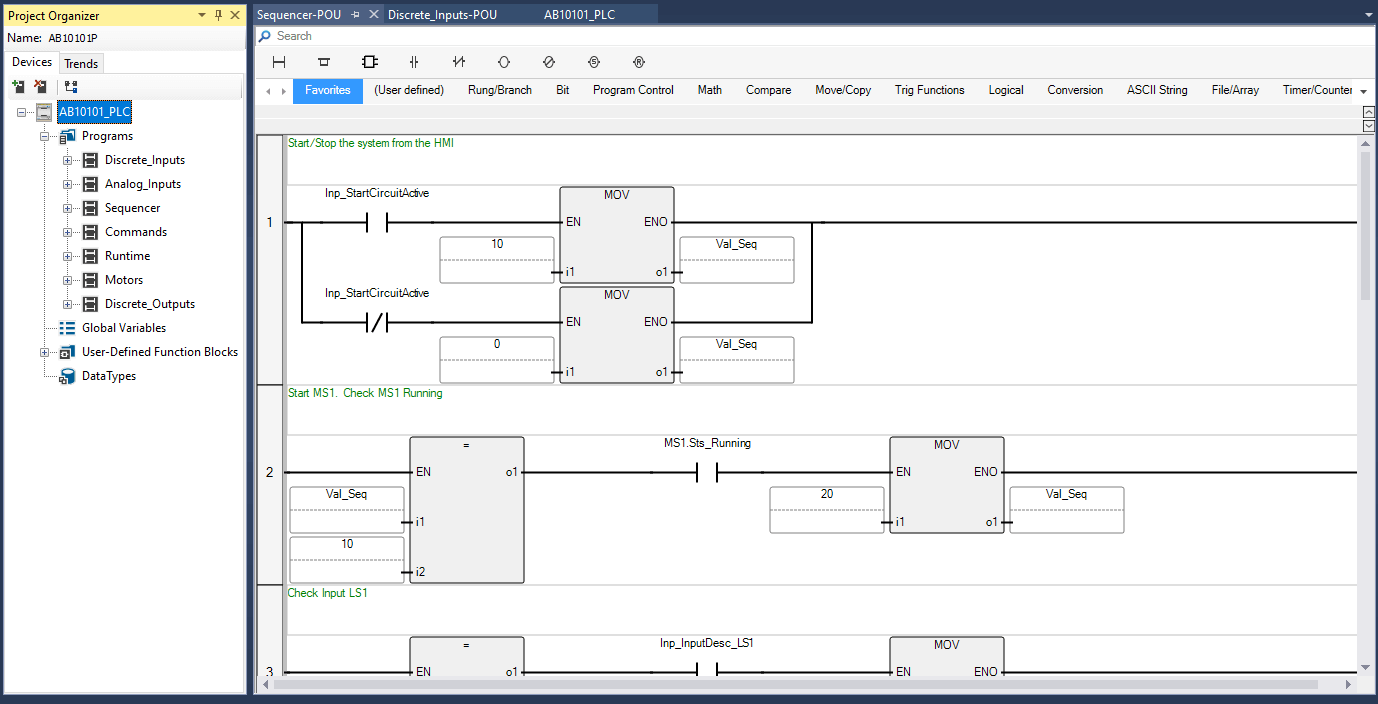

Micro810 PLC Programming Sequencer Routine

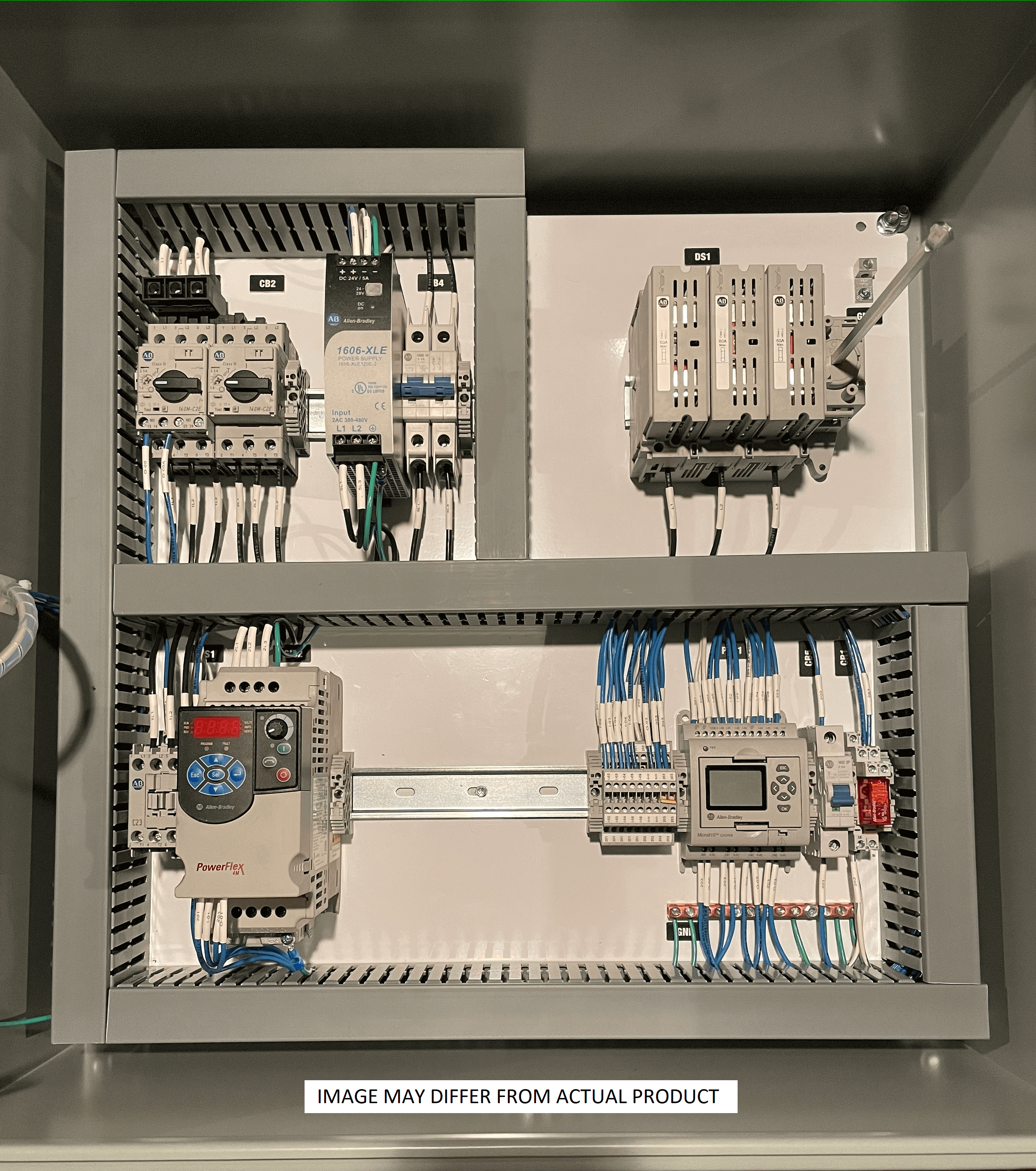

Micro810 PLC Panel Image

Basic Automation: Start/Stop Pushbuttons, Micro810

$3,129.00



  • Up to 200 Amp Rotary Disconnect (depending on number of motors and sizes)
  • Allen-Bradley and Hoffman Components used whenever possible
  • Micro810 PLC w/LCD Display and combination of 100-C Motor Starters w/ Aux Contacts or Powerflex 4M VFDs
  • Programming USB Cable and Micro810 Adapter Included
  • Control Power: 24VDC (5 Amp) or 120VAC (500VA)
  • Micro810: (Up to 8/4) 24VDC/120VAC Inputs or Analog (0-10VDC) Inputs, (Up to 4) Relay Output, pre-wired to Terminal Blocks
  • Red Safety Relay and Raised Red Stop Pushbutton for Enhanced Hardwired Safety Circuit
  • Mild Steel ANSI Grey Type 4 Painted Panel Enclosure with Mounting Foot Kit. PANEL SIZE WILL VARY (Min. 24″x24″x10″). Fan/Filter Kit included with VFDs when required
  • Pre-programmed with On/Off Debounce AOIs (each input) and Basic Sequencer
  • Includes Electrical Schematic Drawings and User/Programming Manual
  • 1 Additional Hour of Free Custom Application Programming, Drawings Updates, and/or Remote Installation Support
  • Standard Lead Time: 7-10 Days (*subject to Terms and Conditions)
  • Need a different version of this standard design? Please just Contact Us and we will post it for standard purchase.
  • For Indoor Use ONLY. Keep out of direct sunlight
SKU: AB10101 Categories: , , Tag:
Choose Variable Frequency Drives (VFD) or Motor Starters (MS) for each. Powerflex 4M VFD Not Available for 575VAC. ***Prices Include correct size disconnect, motor protection, fan/filter, panel size, etc
Product total
Options total
Grand total
Request Custom Changes

Product Categories

Description

Automation Ready Panels introduces the next level of the Control Panel Design Customer Experience:  Hardware Design, Software Design, and Engineering Service for the price of our Competitions Hardware Build-to-Print.

This Simple Automation Panel is based around a small micro PLC, FVNR Motor Starters, and/or Powerflex 4M Variable Frequency Drives (*).  With this control panel, the PLC can be programmed flexibly with many logic options.  Automation Ready Panels pre-programs this system with Discrete Input Debounce (On/Off Timers) programming blocks to keep inputs from flutter or can be used for delay timers on levels, photoeyes, or other sensors.  A pilot light is embedded in the green start pushbutton and programmed to flash with a pattern for system status or other indications.  A shell sequencer program has been added to reduce final integration time.  If desired, one of Automation Ready Panels controls engineers can program up to one hour of free programming (**) to finish off your sequencer, meeting your applications needs.  This means that a fully functional controls system can be delivered and ready to install, wire sensors and motors, power up, and the system is up and running.

(*) Up to 3 Motor Starters or VFDs can be used in this design with a Full-Load Amps of less than 200 Amps (Due to our 200 Amp Max Disconnect Limitation: largest motor amps x 1.25 + sum of other motor amps + non-motor continuous loads x 1.25).  Visit https://www.engineeringtoolbox.com/elctrical-motor-full-load-current-d_1499.html for motor FLA chart.  Panel Size may be larger than shown if large VFDs are selected (May also include fan/filter kit if VFDs are selected).  Temperature calculation assumes only back of panel has no air flow, Indoor Use (out of direct sunlight), 50-90°F Ambient temperature.
(**) The free included hour of programming can also be used either partially or fully for CAD drawings updates and/or remote installation phone support.
(***) Design according to UL508a

Need a different customization to this design? Please use the Contact Us webpage to let us know how we can help.
