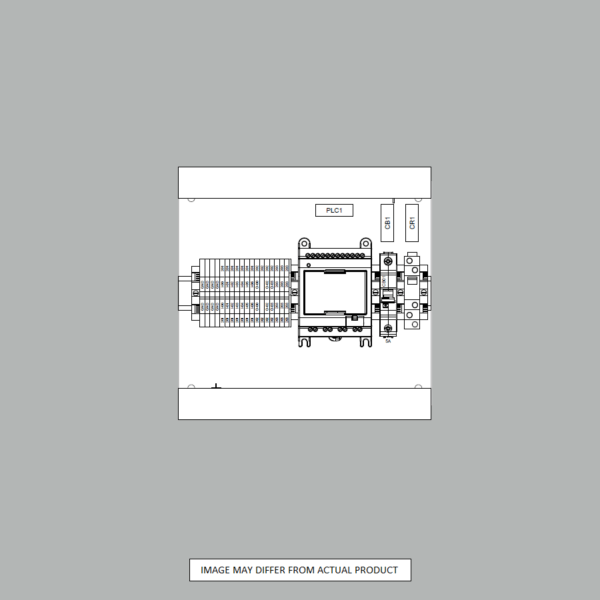

Micro810 PLC Only Panel

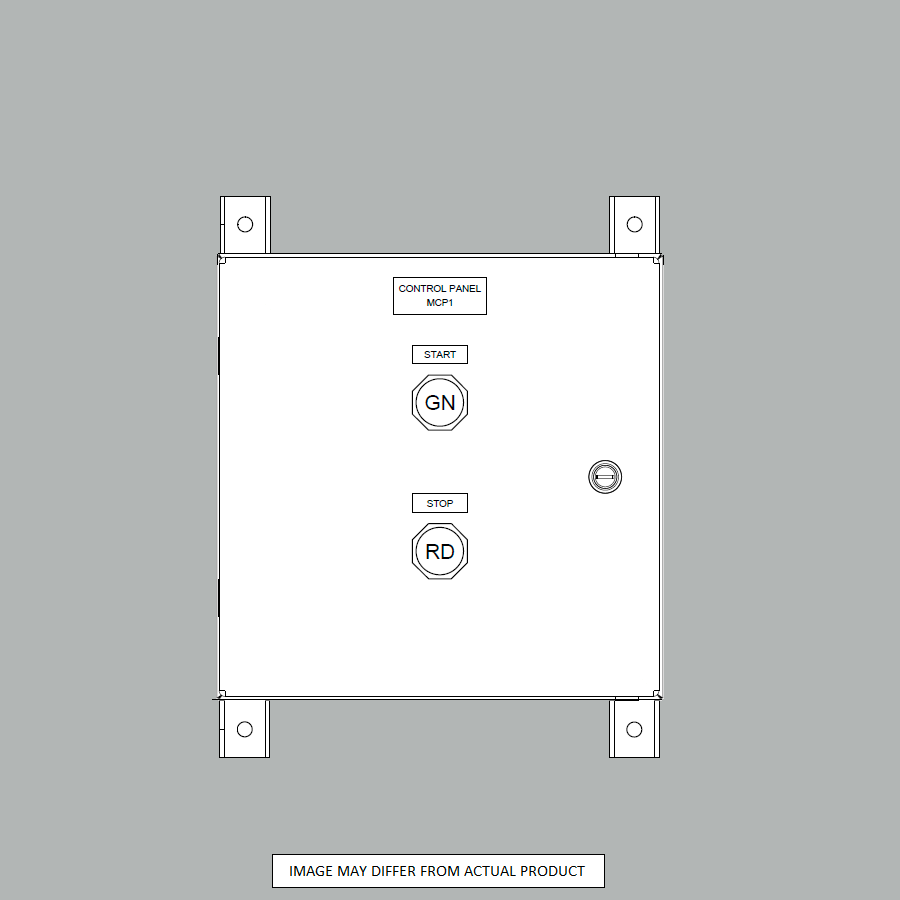

Micro810 PLC Only Panel Enclosure

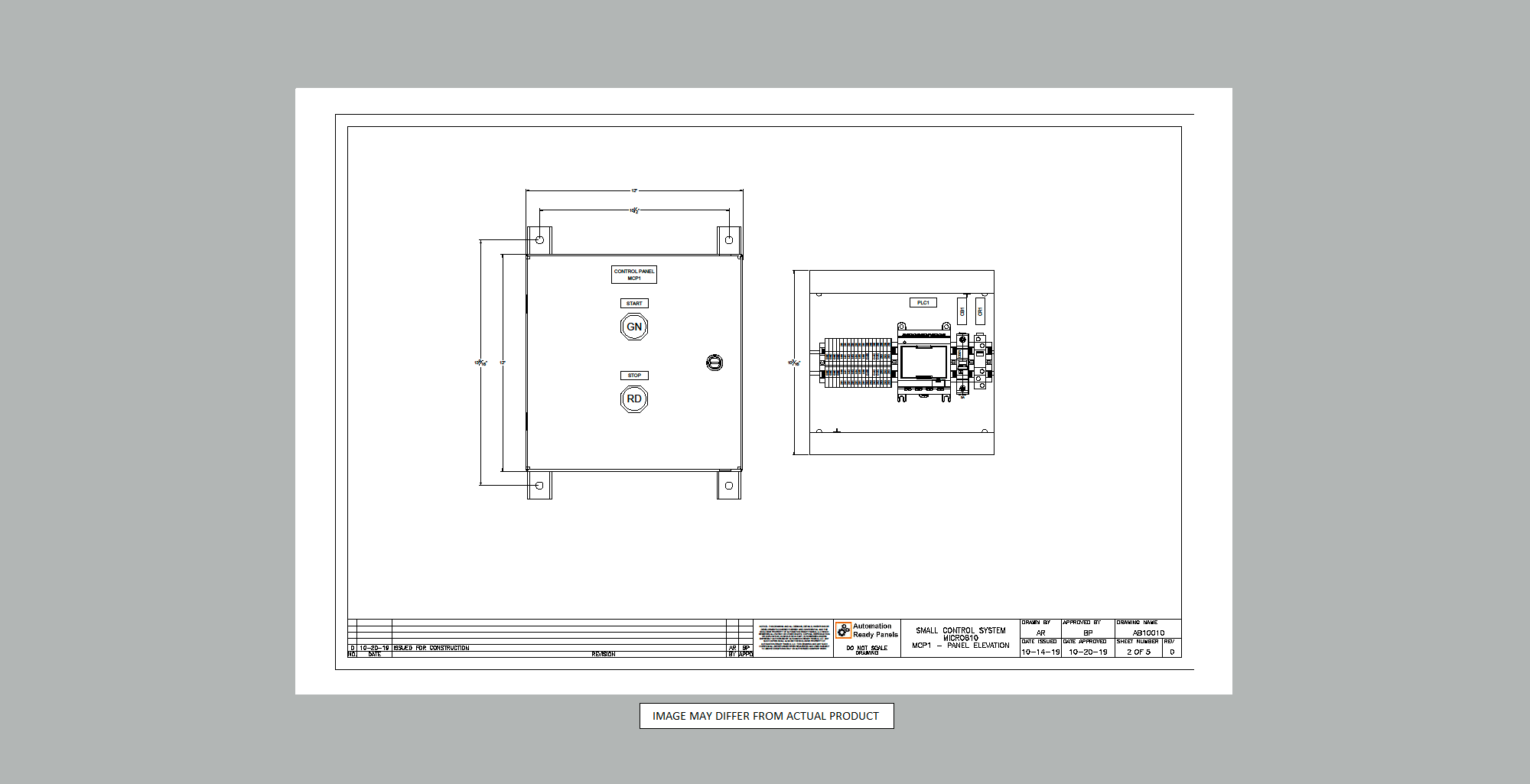

Micro810 PLC Only Panel Layout
Micro810 PLC Programming Inputs Routine
Micro810 PLC Programming Sequencer Routine

Basic Automation: PLC Only, Start/Stop Pushbuttons, Micro810

$1,189.00



  • 24VDC or 120VAC (5 Amp) Power
  • Allen-Bradley and Hoffman Components used whenever possible
  • Micro810 PLC w/ LCD Display.  Programming USB Cable and Micro810 Programming Adapter
  • (Up to 8/4) 24VDC/120VAC Inputs or Analog (0-10VDC) Inputs, (4) Relay Outputs, pre-wired to Terminal Blocks. Micro810 comes standard with 8 Inputs and 4 Relay Outputs.

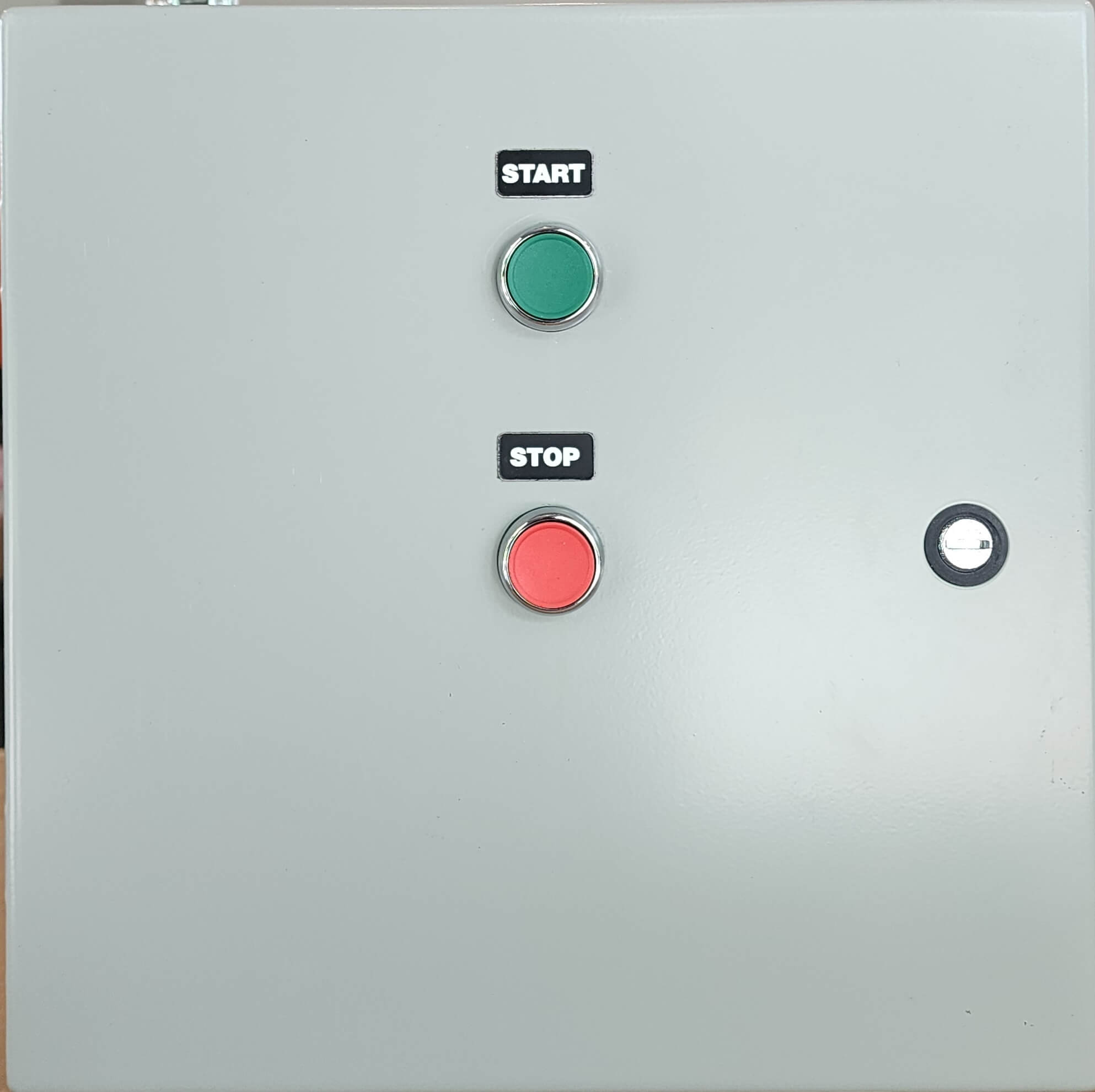

  • Safety Isolation Relay and Raised Red Stop Pushbutton for Enhanced Hardwired Safety Circuit (if pushbuttons chosen)
  • Mild Steel ANSI Grey Type 4 Painted Panel Enclosure with Mounting Foot Kit.
  • Pre-programmed with On/Off Debounce AOIs (each input) and Basic Sequencer
  • Includes Electrical Schematic Drawings and User/Programming Manual
  • 1 Additional Hour of Free Custom Application Programming, Drawings Updates, and/or Remote Installation Support
  • Standard Lead Time: 7-10 Days (*subject to Terms and Conditions)
  • Need a different version of this standard design? Please just Contact Us and we will post it for standard purchase.
SKU: AB10010 Categories: , , Tags: ,
Includes Safety Isolation Relay and raised stop pushbutton
Product total
Options total
Grand total
Request Custom Changes

Product Categories

Description

Automation Ready Panels introduces the next level of the Control Panel Design Customer Experience:  Hardware Design, Software Design, and Engineering Service for the price of our Competitions Hardware Build-to-Print.

This Simple Automation Panel is based around a small micro PLC.  With this control panel, the PLC can be programmed flexibly with many logic options.  Automation Ready Panels pre-programs this system with Discrete Input Debounce (On/Off Timers) programming blocks to keep inputs from flutter or can be used for delay timers on levels, photoeyes, or other sensors.  A pilot light is embedded in the green start pushbutton and programmed to flash with a pattern for system status or other indications.  A shell sequencer program has been added to reduce final integration time.  If desired, one of Automation Ready Panels controls engineers can program up to one hour of free programming (**) to finish off your sequencer, meeting your applications needs.  This means that a fully functional controls system can be delivered and ready to install, wire sensors, power up, and the system is up and running.

(**) The free included hour of programming can also be used either partially or fully for CAD drawings updates and/or remote installation phone support.
(***) Design according to UL508a

Need a different customization to this design? Please use the Contact Us webpage to let us know how we can help.
