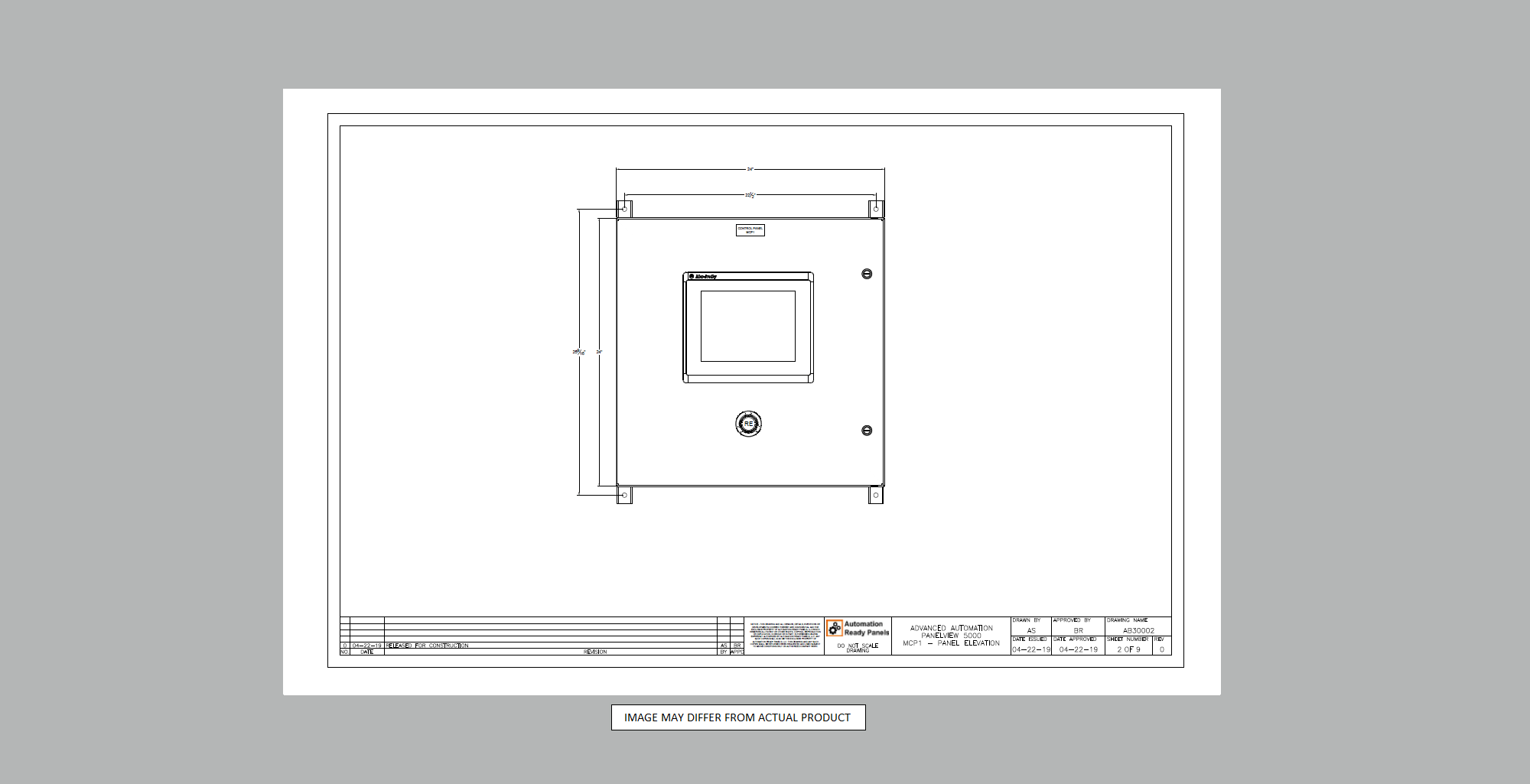

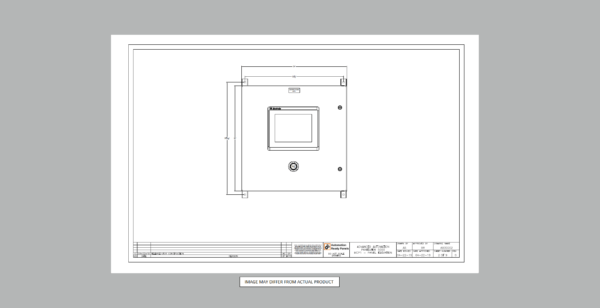

Panelview 5000 Panel Layout
CompactLogix 5380 HMI Displays

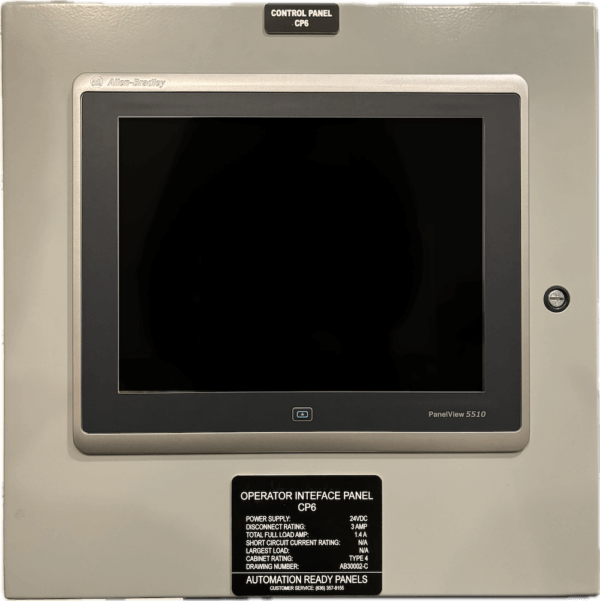

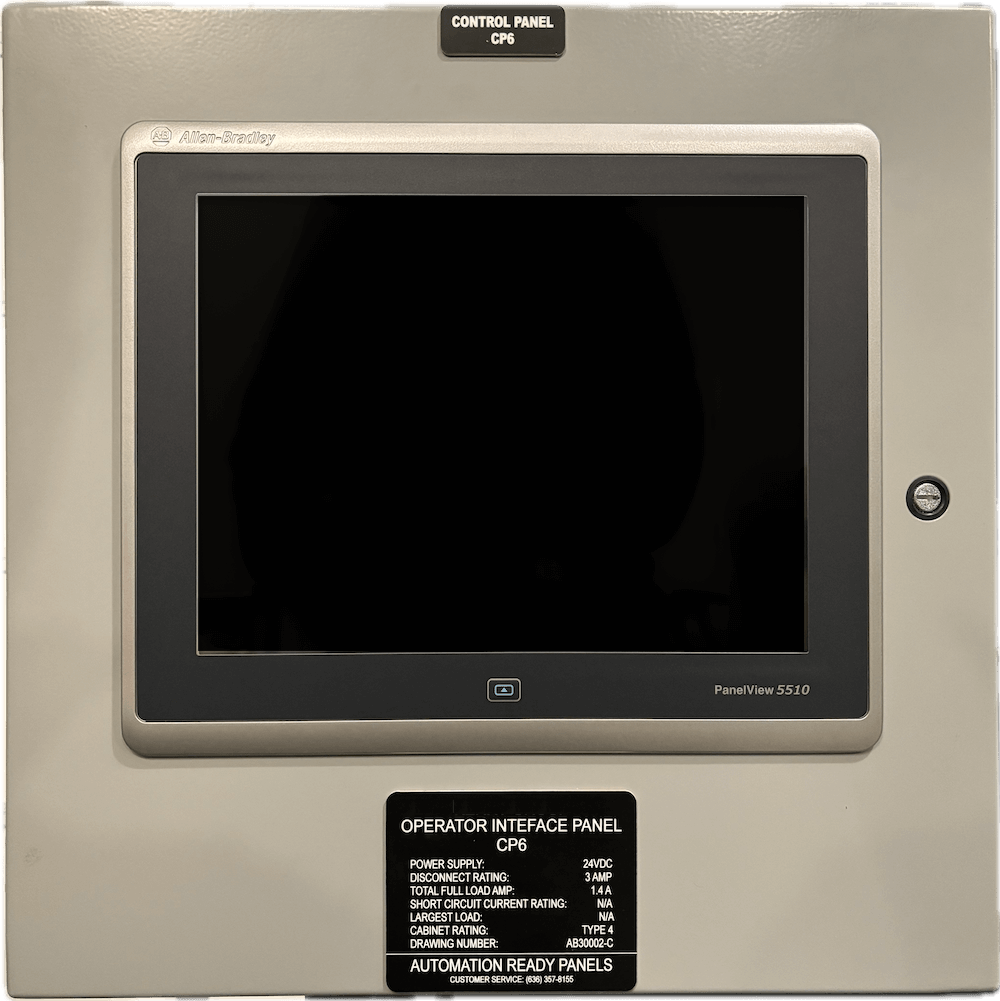

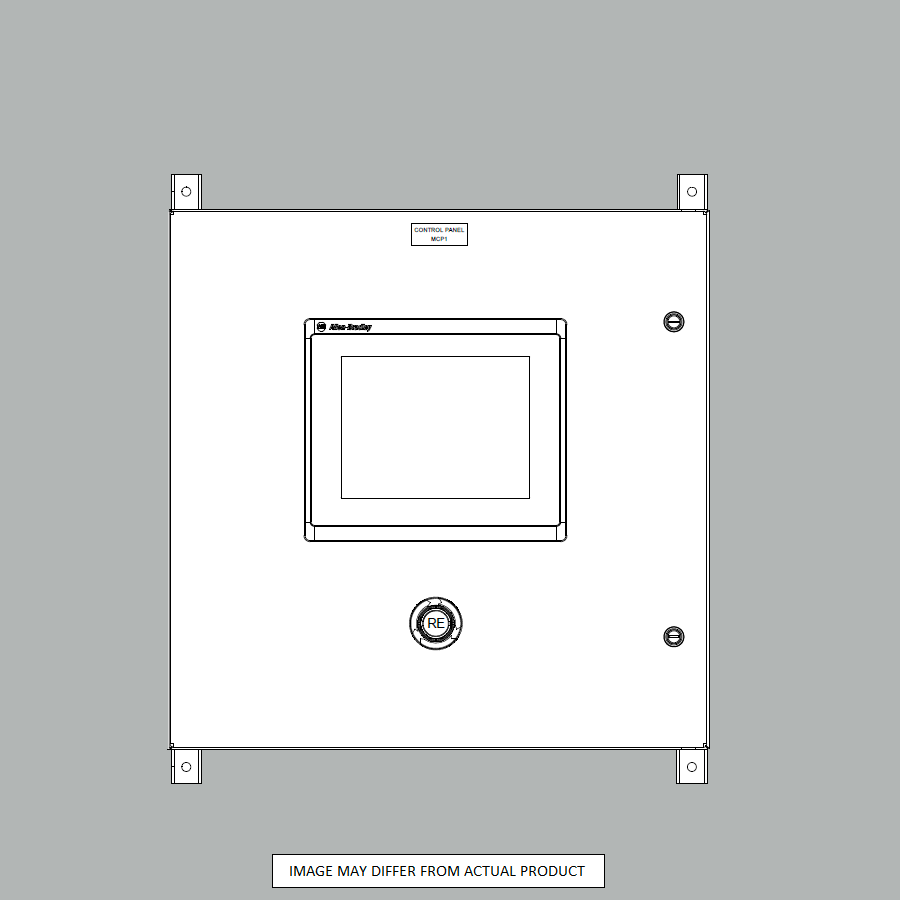

Panelview 5000 HMI Panel Enclosure

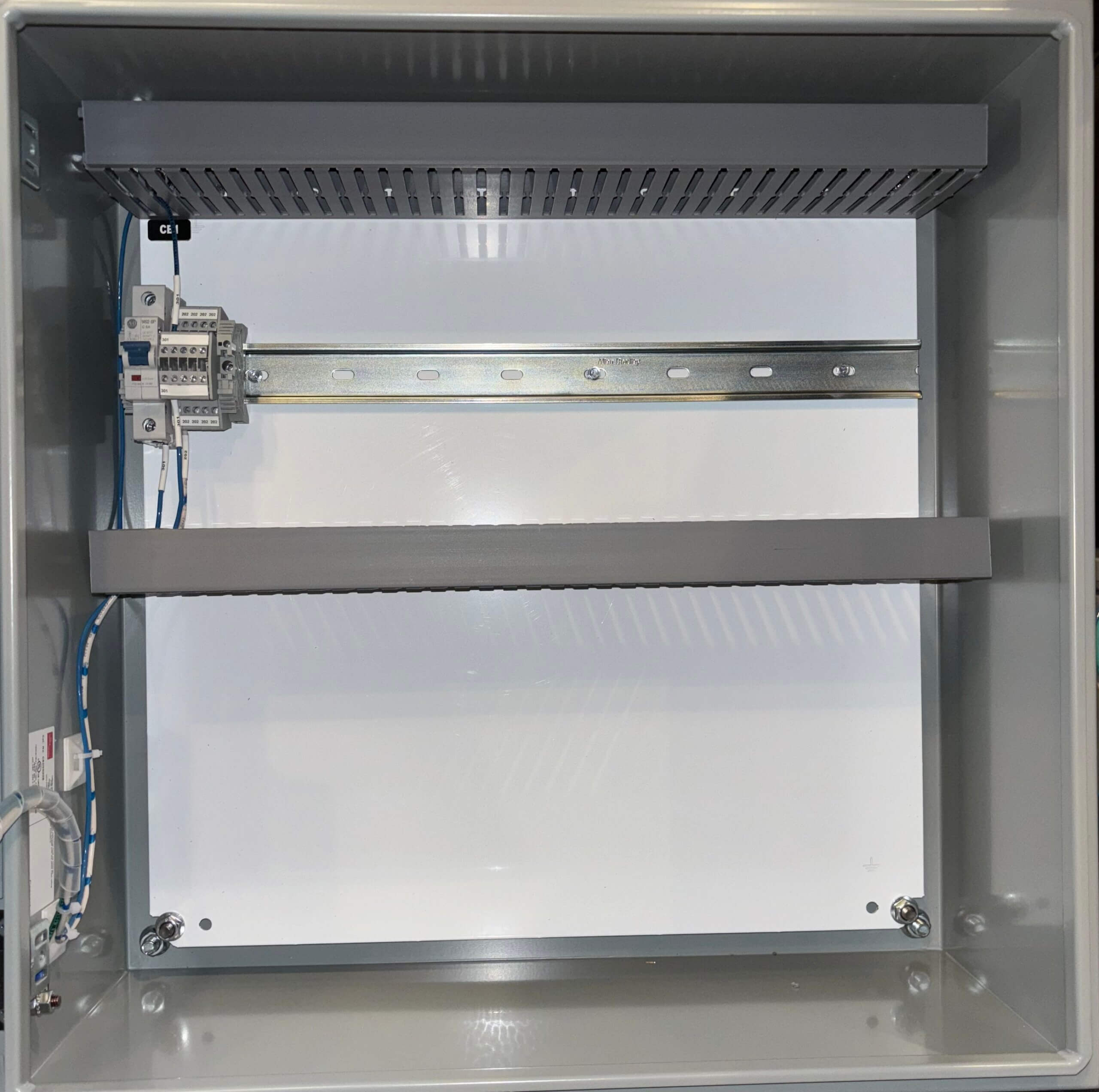

Panelview 5000 HMI Panel Subpanel

Advanced Automation: HMI Only, Panelview 5000

$1,799.00



  • 24VDC Feeder Power
  • Allen-Bradley and Hoffman Components used whenever possible
  • 6″ Color/Touch Panelview 5000 HMI
  • Red Mushroom Emergency Stop Pushbutton, Dual Channel (Optional)
  • Mild Steel ANSI Grey Type 4 Painted Panel Enclosure with Mounting Foot Kit (PANEL SIZE: 24″x24″x8″).  No other internal components are included except for the subpanel.
  • Pre-programmed with On/Off Delay On Delay Off/Scaling AOIs (each input), Manual Motor Control, VFD Status, State Machine and Sequencers, Comms, OEE, Recipes, etc (HMI programming requires an Advanced Automation PLC Control Panel to connect correctly to the PLC tags)
  • Includes Electrical Schematic Drawings and User/Programming Manual
  • 1 Additional Hour of Free Custom Application Programming, Drawings Updates, and/or Remote Installation Support
  • Standard Lead Time: 7-10 Days (*subject to Terms and Conditions)
  • Need a different version of this standard design? Please just Contact Us and we will post it for standard purchase.
SKU: AB30002 Categories: , , , Tags: ,
Product total
Options total
Grand total
Request Custom Changes

Product Categories

Description

Automation Ready Panels introduces the next level of the Control Panel Design Customer Experience:  Hardware Design, Software Design, and Engineering Service for the price of our Competitions Hardware Build-to-Print.

This Advanced Automation HMI Panel is based around a state of the art Color/Touch HMI.

With this control panel, the HMI can be programmed with features and settings for operational flexibility when paired with an Advanced Automation PLC panel from Automation Ready Panels.  Automation Ready Panels pre-programs the Advanced Automation Panel system with Discrete Input Delay (On/Off Timers) programming blocks to keep inputs from flutter or can be used for delay timers on levels, photoeyes, or other sensors. Analog Scaling programming blocks are used for analog inputs/outputs.  Motor, VFD, and devices programming blocks are included with feature rich functionality (Rockwell Machine Builder Library V12 and Power Device Library V2.2).  Statistical Analysis programming blocks can be used for average and standard deviation calcs for a sample size. Other communications types to Micro800 PLCs and SMC valve banks are included.  A full state machine, shell sequencer programs, and a safety program have been added to reduce final integration time.  The HMI has pre-designed graphics for OEE production data (current and previous shift), Cycle Timer, Production Rate, Recipe Status, State Machine and Sequencer Status, Alarming and Alarm Management, VFD control status and faults popup, Valve and device control and status popups, settings input boxes, motor valve analog discrete device objects with breadcrumbs, historical trending, user security, recipe management, PDF Viewer with manuals and electrical drawings embedded in the HMI, Cycle Reports, Preventive Maintenance Report, Emailing Reports, and Batch Tracking.  If desired, one of Automation Ready Panels controls engineers can program up to one hour of free programming (**) to finish off your sequencer, meeting your applications needs.  This means that a fully functional controls system can be delivered and ready to install, wire sensors and motors, power up, and the system is up and running.

(**) The free included hour of programming can also be used either partially or fully for CAD drawings updates and/or remote installation phone support.
(***) Design according to UL508a

Need a different customization to this design? Please use the Contact Us webpage to let us know how we can help.
