Recipe

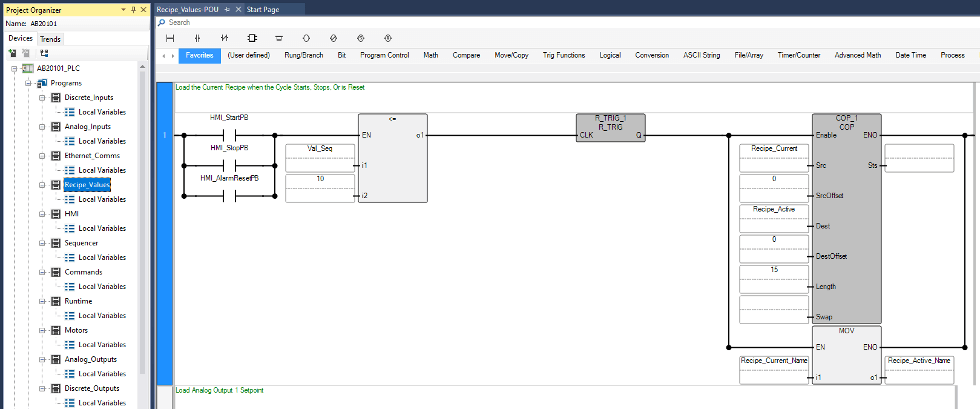

The system recipe can be programmed in the Recipe program (highlighted blue below).  The first rung is used to copy the new recipe from the HMI to the sequencer logic whenever the HMI start, stop, or reset buttons are pressed.  All Recipe_Active tag values then are loaded in subsequent rungs to the equipment or sequence operations used during automatic operations.
