Tags

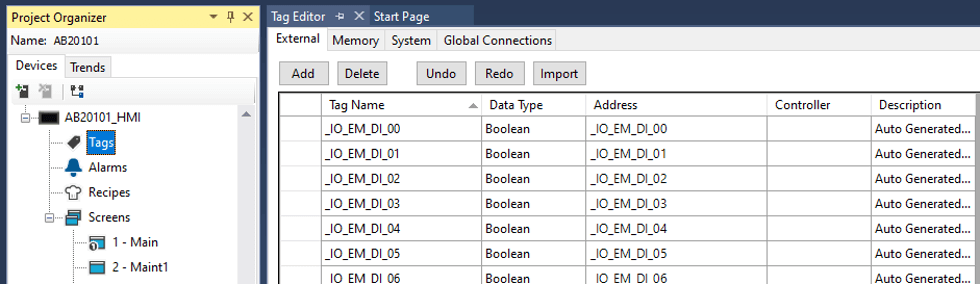

The HMI programming is found inside the same file as the PLC program.  The files are located toward the bottom of the left-hand navigation tree as show here to the left of the image.

The PLC logic values communicate to the HMI through a list of HMI tags.  It is a large alias/mapping list. Any tags that will be needed by the HMI will need to be created here first.
