Incoming Wire Connections

All ARP Industrial Control Panels are equipped with 3-Phase rotary disconnects for the incoming wire terminations. Three phase input power connections are labeled L1, L2, and L3.

Here is an illustration of the wiring connections

*Front view of the rotary disconnect

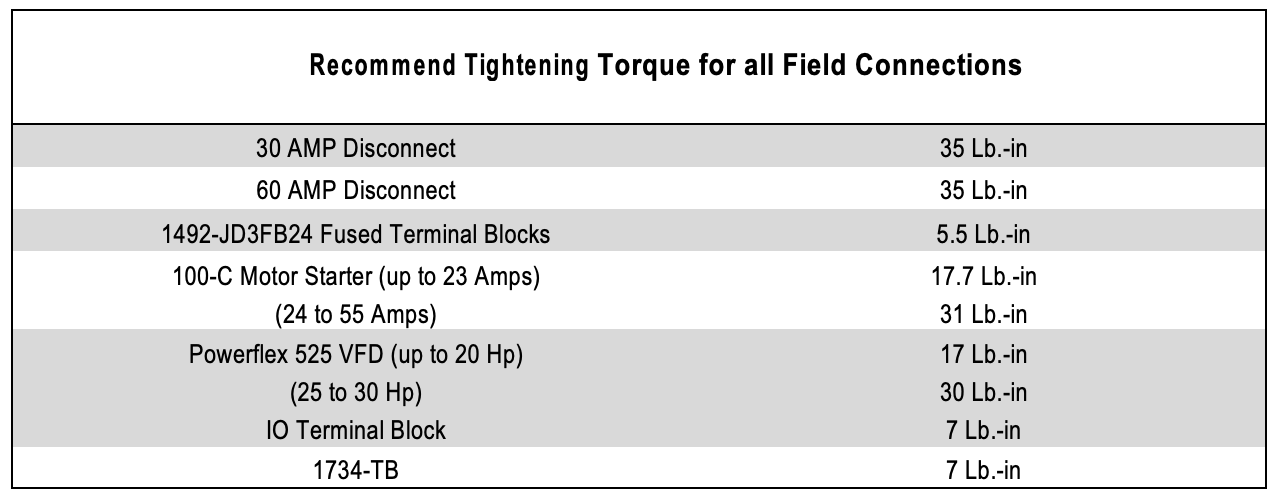

Below is a table for the tightening torque of each wire terminal. Make sure you tighten all screws internal to the panel upon first receipt of the panel. Also, the licensed electrician will need to know these when landing the incoming power wires, along with any motor leads and sensors he will be connecting to the panel.
