480V 3 Phase US Industrial Power

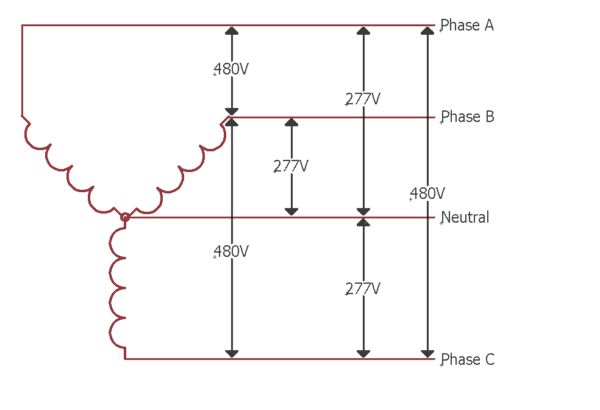

480V 3 Phase Wye



Most people in the United States are used to 120V single-phase power. However, a different type of power is available, known as the 480V 3 phase. This type of power is used in many industrial applications due to its high capacity. Let’s look at what exactly 480V 3 phase US power is and some of its benefits over other forms of power…

What is the 240v 3 Phase?

240v 3 phase is a type of power often used in industrial applications. It comprises three phases of power, which makes it more efficient and reliable than a single-phase system. However, this power can be hazardous if not handled properly.

What is 480V 3 Phase?

480V 3 phase is an electrical power typically used in industrial and commercial settings. It is a high voltage system that can provide a lot of power to run large machinery or equipment.

Benefits of 480V 3 Phase Power

There are several benefits of 480V 3 phase power over other forms of power. One of the biggest benefits is that it can provide more power than a single-phase system. It means you can use it for large industrial applications that require a lot of power.

Another benefit is that it is more efficient than a single-phase system. It means that less energy is lost during transmission and distribution.

A third benefit is that since it is higher voltage, it is also much lower amperage.  That means smaller wiring and components can be used to achieve the same results.

Finally, this power is more reliable than a single-phase system. This is because there are three phases of power that you can use instead of just one. If one phase goes down, the other two phases can still provide power.

How to get connected to a 480V 3 Phase power supply?

If you are interested in 480V 3 phase power, there are a few things you need to do to get connected.

1. First, you need to find an electrician qualified to work with this type of power.
2. Second, you need to ensure that your home or business is equipped with the proper electrical wiring and outlets for this type of power.
3. Third, you need to contact your local utility company to find out if they offer this type of power.

After doing all of these things, you will be able to connect to a 480V 3 phase power supply and start using this type of power in your home or business.

As an alternative, you could purchase a phase converter to convert 240V single-phase to 240 3 Phase.  Then connect a a step-up transformer to convert from 240 3 Phase to 480V 3 Phase.

Safety Precautions

You must take a few safety precautions when working with this phase power.

1. Always make sure that you are using the proper electrical wiring and outlets for this type of power.
2. Never try to work on the electrical system yourself. Always hire a professional electrician.

Wrapping Up

480V 3 Phase Delta



480V 3 Phase power is used in the United States for industrial and commercial applications. This voltage is also used in Canada, Mexico, and parts of South America. It is usually connected in 480V 3 Phase Wye or 480V 3 Phase Delta configurations.  The nominal voltage is actually 460V 3 Phase, +/- 10%.  So it is not uncommon to see the incoming voltage range from 440V to 480V.  Take care not to confuse this with other common 3 Phase voltages like 208V 3 Phase, 240V 3 Phase, 575V 3 Phase.  They are different voltages requiring different components and considerations.  Another oddball to watch out for is 480VAC 3 Phase Grounded-Delta.  You can contact Automation Ready Panels for further questions!
